A semi trailer is a fundamental component in the commercial vehicle industry, serving as the backbone of freight transport across the globe. As a leading Chinese commercial vehicle supplier, KeyChain Venture Co., Ltd. provides high-performance bus and heavy-duty truck solutions to clients domestically and internationally. Understanding the size and dimensions of semi trailers is crucial for logistics planning, compliance with transportation regulations, and optimizing cargo capacity.
This article will explore the dimensions, types, and uses of semi trailers in detail, supported by descriptive explanations and multimedia elements.
A semi trailer is a type of trailer that does not have a front axle and relies on a tractor unit (truck) to provide support by connecting with the tractor's fifth wheel. It forms one half of the tractor-trailer combination. These trailers are designed for hauling different types of cargo, ranging from general goods to specialized freight such as refrigerated items or hazardous materials.
- Kingpin: The front connection point that couples with the tractor's fifth wheel.
- Bed: The trailer platform, which can be enclosed or open.
- Axles: Typically two or more, with wheels and tires.
- Air Brake System: Operates trailer brakes and parking brakes.
- Electrical System: Controls lighting and signals.
- Suspension: Provides load support and shock absorption.
The size of a semi trailer is primarily regulated to ensure safety on public roads while maximizing cargo capacity. The most common standard dimensions for semi trailers in the U.S., set by the Department of Transportation, are:
- Length: 48 to 53 feet (576 to 636 inches)
- Width: 8.5 feet (102 inches)
- Height: 13.5 feet (162 inches)
These dimensions represent a balance between maneuverability, cargo volume, and legal restrictions on highways.
Semi trailers vary in length from 48 feet to 53 feet, with 53 feet being the maximum length typically allowed for interstate highways. Some extendable trailers can reach even longer lengths when special permits are acquired. The length of a semi trailer impacts the number of pallets or amount of cargo it can carry, making this aspect crucial for logistics efficiency.
The width of most semi trailers is standardized at 8.5 feet. This width allows them to travel safely through highways and bridges without causing obstruction. Wider trailers require special permits and may be restricted in certain areas. The standard width also matches loading dock sizes, facilitating efficient loading and unloading.
The height of a semi trailer is usually around 13.5 feet, dictated by clearance limits such as road bridges, tunnels, and power lines. Some specialized trailers may have lower or adjustable heights, especially those designed to carry oversized or tall cargo, but they must comply with legal height restrictions for travel on public roads.
Semi trailers come in various types, each tailored for specific hauling needs. Here's an overview of major semi trailer categories with their approximate dimensions and uses:

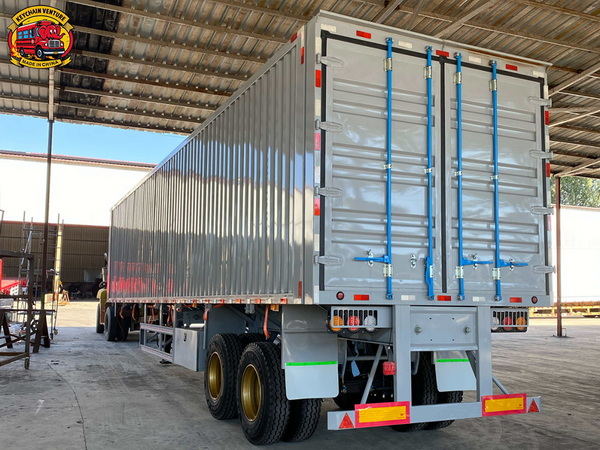

- Description: Fully enclosed trailer protecting cargo from the elements.
- Dimensions: Length 48-53 feet, Width 8.5 feet, Height 13.5 feet.
- Use: Transporting palletized goods, household items, and general freight.
Dry vans are the most common semi trailers seen on roads. They provide secure, weatherproof environments for transporting all kinds of dry goods. These trailers are ideal for products that require protection but not temperature control.
- Description: Insulated and climate-controlled trailer for perishable goods.
- Dimensions: Similar to dry vans but equipped with refrigeration units.
- Use: Transport of food, pharmaceuticals, and temperature-sensitive cargo.
Reefer trailers are crucial in the cold chain logistics industry. They maintain specific temperature ranges to preserve perishables such as fresh produce, frozen foods, and medical supplies. Despite their similarities to dry vans in size, the refrigeration unit usually adds weight and slightly reduces cargo space.
- Description: Open trailer without sides or roof, allowing for easy loading/unloading from any side.
- Dimensions: Length 48-53 feet, Width 8.5 feet, Height varies.
- Use: Transporting construction materials, machinery, and oversized loads.
Flatbed trailers offer unmatched flexibility for hauling items that don't fit inside enclosed trailers. They are suitable for oversized equipment, building materials like lumber or steel, and machinery that require crane loading or side access.

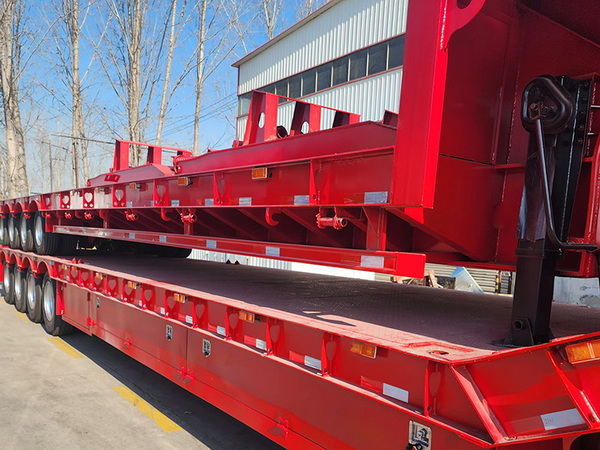

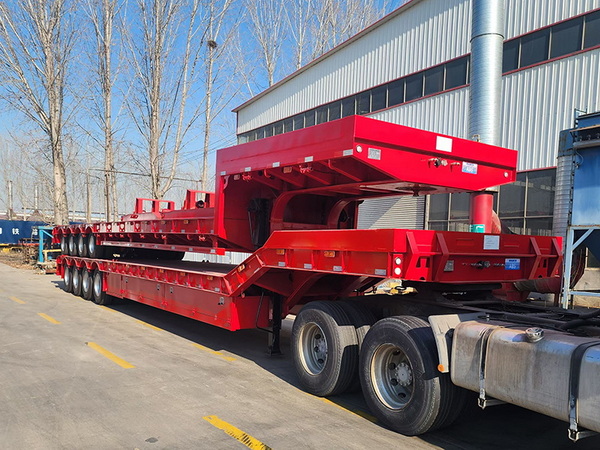

- Description: Dual-level trailer allowing for taller cargo by lowering the deck.
- Dimensions: Length 48-53 feet, lowered deck height approx. 10 feet.
- Use: Hauling tall machinery, construction equipment, and heavy loads.
Step decks provide lower deck height compared to flatbeds, enabling shipment of taller loads without violating height restrictions. This is particularly useful for transporting industrial equipment or large vehicles.
- Description: Cylindrical trailer designed to carry liquids or gases.
- Dimensions: Length 40-53 feet, Width 8.5 feet, Height varies.
- Use: Transport of fuel, chemicals, food liquids (milk, juices).
Tankers are specialized trailers that carry liquid or gaseous materials safely and efficiently. Their design varies according to the substance transported, with features like compartments to separate different chemicals or insulated linings for food-grade liquids.
- These include trailers designed for unique cargo such as hazardous materials, vehicle haulers, mobile kitchens, and medical facilities. Their dimensions differ widely depending on the application, but they generally comply with road regulations.
Choosing the right semi trailer size depends on several factors:
The physical characteristics of cargo—whether it's bulky, heavy, fragile, or perishable—impacts the selection of trailer type and dimensions. For instance, refrigerated trailers for perishables require insulation and cooling equipment, which reduces usable interior space.
Each country or region has its own regulations concerning maximum trailer dimensions and weights. Operators must select trailers that conform to these laws to avoid penalties and ensure safe travel.
Routes with low clearance bridges, weight-restricted roads, or narrow lanes may require smaller or specially designed trailers. Additionally, urban deliveries often need more maneuverable trailers.
Longer trailers maximize cargo volume but reduce maneuverability, while shorter trailers offer agility but less capacity. Businesses balance size, volume, and delivery efficiency to optimize operations.
Larger trailers generally increase wind resistance and weight, which raises fuel consumption. Aerodynamically optimized trailers can help mitigate this effect.
The size and design of the trailer affect how quickly goods can be loaded and unloaded. Flatbeds and step decks facilitate faster cargo handling for oversized goods compared to enclosed vans.
Different trailer sizes and types require varying maintenance levels. For example, tankers need regular checks for leaks and corrosion, while reefers need refrigeration unit servicing.
Modern technologies are influencing how semi trailers are designed and used:
- Expandable Trailers: Some flatbeds and specialty trailers feature extendable sections to accommodate longer loads without needing oversized permits.
- Lightweight Materials: Use of aluminum and composites has reduced trailer weight, allowing for larger cargo loads within legal weight limits.
- Smart Trailer Technology: Sensors and IoT integration monitor trailer status, load security, and environmental conditions, optimizing cargo safety and efficiency.
- Aerodynamic Enhancements: Side skirts, trailer tails, and smooth undercarriages help reduce drag, enabling fuel savings, especially on long hauls.
The size of a semi trailer plays a critical role in transportation logistics, cargo management, and regulatory compliance. Standard semi trailer dimensions typically range from 48 to 53 feet in length, 8.5 feet in width, and approximately 13.5 feet in height. Various trailer types serve different cargo needs, from dry van and refrigerated trailers to flatbeds and specialty trailers. As a leader in commercial vehicle supply, KeyChain Venture Co., Ltd. focuses on providing trailers optimized for high performance and logistical efficiency, catering to a broad range of freight and shipping requirements.
Choosing the appropriate semi trailer size and type depends on the nature of cargo, route restrictions, and operational goals. Innovations in trailer technology continue to enhance their functionality, reducing fuel consumption and increasing cargo safety.
The typical length of a semi trailer ranges from 48 to 53 feet, with 53 feet being the most common maximum length on highways.
Most semi trailers are 8.5 feet wide, which is the legal width allowed on most roads and highways without special permits.
Flatbed semi trailers can carry large, heavy, or oddly shaped items such as construction materials, heavy machinery, and oversized equipment.
Refrigerated (reefer) semi trailers typically have an external height of about 13.5 feet, similar to dry van trailers.
Yes, some flatbed and specialty trailers can be extended beyond the standard 53 feet for hauling larger or unusually long cargo, often requiring special permits.
