Water trucks are essential for a variety of industries including construction, agriculture, mining, and municipal services. They deliver water for dust control, irrigation, fire suppression, and other critical applications. Building a high-performance water truck requires careful selection of components, precise assembly, and adherence to safety standards. This comprehensive guide will walk you through the process of building a water truck, highlighting key parts, assembly tips, and maintenance practices to ensure optimal performance and durability.

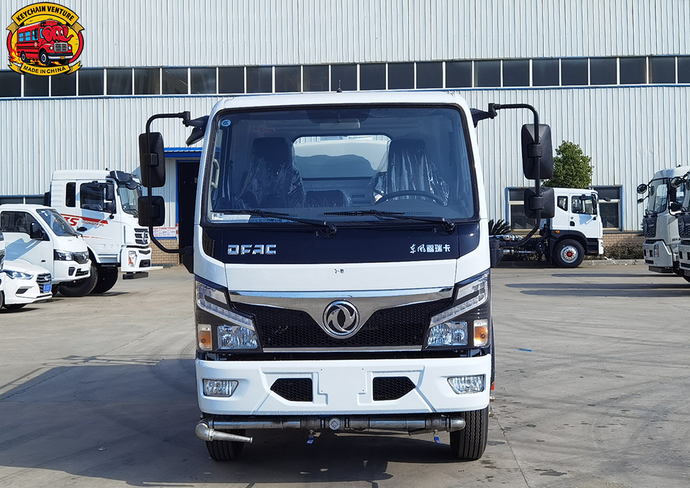

A water truck is a specially designed commercial vehicle equipped with a large tank to transport water. It is used mainly to spray water or deliver large volumes of water to remote or hard-to-reach locations. The truck can be fitted with various spray nozzles, pumps, and hoses to meet specific operational needs.
The foundation of a water truck starts with a robust chassis combined with a comfortable and functional cab. Choose a chassis rated for heavy payloads, typically a medium to heavy-duty truck frame. Popular manufacturers include Freightliner, Volvo, and Isuzu, which supply durable commercial truck chassis. The cab should provide good visibility, ergonomic controls, and comfort for operators who often work long hours in challenging environmental conditions.
The water tank is the most critical part of the water truck. It needs to be made of corrosion-resistant materials such as stainless steel, aluminum, or high-density polyethylene (HDPE). The tank's size varies depending on truck capacity, usually ranging between 2,000 to 10,000 gallons. Properly designed tanks include internal baffles to reduce water sloshing, which improves driving safety and minimizes wear on the tank and chassis.
A reliable pump is essential to control the flow and pressure of water delivery. Centrifugal pumps are commonly used in water trucks because of their ability to handle large volumes with steady pressure. Ensure the pump capacity matches the intended use, whether for spraying, filling, or fire-fighting. Pumps may be powered by the truck's engine PTO (power take-off) system or by an independent motor.
Water trucks can be equipped with front, rear, and side spray nozzles capable of distributing water in different patterns such as mist, stream, or fan. This versatility allows the truck to be used for different tasks like dust control or ground watering. The piping system must be sturdy and resistant to wear and chemical corrosion. Stainless steel or galvanized steel pipes are preferred for durability. Valves regulate the water flow and spray intensity at each nozzle.
The control panel inside the cab or near the tank allows operators to manage the pump and spray systems. Controls usually include switches, pressure gauges, and emergency shutoffs. A clear, ergonomic setup improves operational safety and efficiency. Modern water trucks may also include electronic controls with programmable settings and remote operation capabilities.
Many water trucks come outfitted with additional equipment such as hose reels, fire suppression foam systems, water cannon turrets, and GPS fleet tracking systems. Hose reels facilitate precise water delivery in confined areas, while foam systems enhance firefighting capabilities. GPS tracking helps companies monitor truck locations, water consumption, and maintenance schedules.
Start by choosing a vehicle chassis that matches your payload requirements and terrain conditions. For heavy-duty water trucks, medium to heavy-duty commercial truck chassis are preferable due to higher load capacity and better stability. Consider whether the truck will operate mainly on highways, rough terrain, or off-road conditions; this impacts suspension type, tire selection, and chassis reinforcement.
Decide the size and material of the water tank based on truck chassis capacity and water delivery needs. Design the tank shape to optimize weight distribution and ensure the center of gravity remains low to improve vehicle stability. Include manholes and inspection ports for easy maintenance and cleaning. Internal baffles are essential to reduce water movement, preventing sudden shifts in weight that could cause unsafe driving conditions.
Fabricate the tank using welding and metal forming techniques if made from steel or aluminum. Ensure all welds are leak-proof, and install baffles inside the tank to prevent water from sloshing and destabilizing the truck while driving. For plastic tanks, use rotational molding technology for strength and durability. Consider coating the interior to prevent biofilm buildup and contamination, especially if the truck is used to carry potable water.
Secure the fabricated tank onto the truck chassis using heavy-duty mounting brackets and bolts. The installation must be firm to resist vibrations during movement. Include access points such as manholes and fill caps for easy inspection and refilling. Ensure proper sealing on all openings to prevent leaks and contamination while driving.
Mount the centrifugal pump near the tank outlet and connect it to the water tank using high-pressure hoses or pipes. Route spray lines to the nozzles mounted on the truck's front, rear, and sides. Use valves to control water flow and pressure at each spraying point. Ensure all connections are tight and pressure tested to avoid leaks or failures during operation.
Wire the pump and spray controls to the control panel inside the cab. Integrate safety features like emergency stop switches and pressure relief valves. Test all electrical connections thoroughly to prevent short circuits or failures. Modern builds may employ programmable logic controllers (PLCs) for automated operation and diagnostics.
Equip the water truck with additional features such as hose reels, spray booms, foam systems (for fire trucks), and GPS tracking for fleet management. These improve functionality and ease of use depending on user requirements. Safety lights, audible alarms, and reflective markings improve visibility and operation during night or poor weather conditions.
Maintaining a water truck is crucial to ensure longevity and reliable performance:
- Regularly inspect the tank for leaks, corrosion, and structural integrity.
- Clean spray nozzles and pumps to prevent clogging caused by sediment or bacteria buildup.
- Check hydraulic and electrical systems routinely for wear or damage.
- Replace pump seals and hoses according to manufacturer recommendations to avoid failures.
- Lubricate mechanical components like valves, pumps, and mounting hardware.
- Perform chassis and brake inspections frequently to maintain roadworthiness and safety.
- Flush the tank periodically to remove sediments and prevent microbial growth, particularly when used for agricultural or potable water supply.
- Always keep the water load within the truck's rated limit to prevent accidents and chassis damage.
- Ensure reflective tape, proper lighting, and warning signs are installed for safe night and construction zone operations.
- Train operators comprehensively on water truck handling, focusing on braking, turning with full tanks, and emergency procedures.
- Use personal protective equipment (PPE) such as gloves and eye protection when handling hoses and pumps.
- Ensure emergency stop controls are tested regularly and clearly marked for quick access.
Water trucks serve a broad range of industries and functions thanks to their versatility:
- Dust Control: Applied on construction sites, mining operations, and unpaved roads to reduce airborne particles and comply with environmental regulations.
- Firefighting: Especially useful in forest areas or remote locations without access to hydrants. Water trucks equipped with foam systems assist wildland fire suppression.
- Agriculture: Supporting irrigation needs during dry spells; supplying water for livestock.
- Municipal Maintenance: Street cleaning, watering public landscaping, and maintaining parks.
- Industrial Services: Cooling down dust or debris during demolition or heavy equipment operation.
Water trucks are customizable for specific operational requirements, making them an indispensable part of modern industrial fleets.
Building a water truck entails carefully choosing a strong chassis, designing and fabricating a durable and well-balanced tank, installing an efficient pumping and spray system, and integrating user-friendly controls and safety features. Proper maintenance and adherence to safety standards ensure that the water truck will operate reliably and safely across differing terrains and applications. With these steps, you can create a high-quality water truck that meets the rigorous demands of industries from construction and mining to firefighting and agriculture.
The tank size depends on the truck chassis and intended use, with capacities typically from 2,000 up to 10,000 gallons.
Stainless steel, aluminum, and high-density polyethylene (HDPE) are preferred for their corrosion resistance and durability.
Regular servicing every 6 months or based on operating hours is recommended to maintain pump efficiency and longevity.
Yes, customization with foam systems, high-pressure pumps, and special nozzles enhances firefighting capabilities for water trucks.
Operators should avoid overloading, maintain situational awareness, wear proper PPE, and receive thorough training on truck handling and emergency procedures.
