Semi trailers are a vital component of the global transportation industry, facilitating the efficient movement of goods across vast distances. For logistics companies, drivers, and fleet operators, understanding the precise dimensions of semi trailers—especially their height—is essential. This knowledge ensures safe passage under bridges, adherence to regulatory standards, and optimal cargo handling. As a leading commercial vehicle supplier, KeyChain Venture Co., Ltd. is proud to offer expert insights into the key dimensions of semi trailers, helping clients both domestically and internationally to make informed decisions in their transportation and fleet management.
A semi trailer is a freight trailer without a front axle. It is designed to be connected to a tractor unit or semi truck via a fifth-wheel coupling, where part of the trailer's weight rests on the tractor. This design allows for greater flexibility and heavier payloads compared to standard trailers. Semi trailers vary widely depending on cargo needs and operational requirements, with types including dry vans, refrigerated trailers, flatbeds, lowboys, and multi-level or double-deck trailers. Each type has its own height considerations that impact transportation planning.
The height of semi trailers typically depends on the trailer type and the purpose it serves:
- Standard Dry Van Trailers: These are the most common and generally have a height of about 13.5 feet (4.11 meters). This height conforms to many regulatory standards across countries and maximizes cargo volume.
- Refrigerated Trailers: Refrigerated or "reefer" trailers are slightly taller, typically ranging from 13.6 to 14.5 feet (4.14 to 4.42 meters). The extra height accommodates insulation and refrigeration components necessary for transporting perishable goods.
- Flatbed Trailers: These are usually shorter, with heights approximately between 11.5 and 13.5 feet (3.51 to 4.11 meters) since they are open and don't require the same vertical enclosure as other trailer types.
- Lowboy Trailers: Designed to carry heavy and tall equipment, lowboy trailers sit much closer to the ground, with heights around 10.5 to 12 feet (3.20 to 3.66 meters). Their lowered deck height allows transportation of oversize loads without exceeding legal height limits.
- Double-Deck Trailers: These specialized trailers, designed for carrying two levels of cargo, can reach heights of up to 14.6 feet (approximately 4.45 meters), slightly taller to account for additional cargo space.
Understanding these different height profiles helps manufacturers, fleet operators, and regulators ensure safe, legal, and efficient freight transport.
Height regulations are crucial for preventing accidents, maintaining road infrastructure, and ensuring safe transit routes. Here's a snapshot of height restrictions internationally:
- United States: The widely accepted maximum height is 13.5 feet for semi trailers on interstate highways, though some states permit heights up to 14 feet with the appropriate oversize permit. This limit helps avoid collisions with bridges, overhead signs, and tunnels.
- Canada: Canadian regulations allow a maximum height of approximately 13.6 feet (4.15 meters) for commercial vehicles, with slight variations depending on the province.
- Europe: Most European Union countries enforce a cap close to 4 meters (13.12 feet) for trailers, aligning transportation safety with infrastructure limits.
- Australia: Australia permits semi trailer heights up to 4.3 meters (about 14.1 feet), but urban centers may have additional restrictions.
Adhering to these height restrictions is vital to prevent damaging infrastructure, avoid costly penalties, and ensure the safety of other road users.
Several factors can cause the height of a semi trailer to vary, either within the same trailer category or across different applications:
- Trailer Design: The structural design by manufacturers can create height differences even among similar trailer types. For example, high-cube dry vans offer more internal height, increasing overall trailer height.
- Cargo Requirements: Some cargo demands specialized trailer types—like lowboys for heavy machinery or double-deckers for multiplex cargo—that directly impact height.
- Mounted Equipment: Items such as refrigeration units, auxiliary fuel tanks, aerodynamic fairings, or lift gates can add inches or even feet to a trailer's height.
- Loading Practices: How cargo is loaded and stacked affects the effective trailer height. Overloaded or improperly stacked goods can exceed height limitations, causing safety hazards.
- Infrastructure Considerations: Routes with low bridges or restricted clearance require operators to choose trailers with compatible heights or secure special permits for taller loads.
Knowing semi trailer height is just one aspect; load planning also involves understanding overall dimensions:
- Length: Standard semi trailers range from 48 to 53 feet long, with some specialty trailers extending longer for oversized loads.
- Width: The usual maximum width is 8.5 feet (102 inches) in many countries, though permits can allow wider configurations.
- Height: Typically, as detailed, the standard is around 13.5 feet, adjustable by type and load.
These dimensions collectively influence payload capacity, route options, and compliance with transport regulations.
The most ubiquitous trailer type, dry vans protect goods from weather and theft. Their height, generally 13.5 feet, is optimized for freight that fits within standard container sizes, facilitating intermodal transport between trucks, trains, and ships.
Reefers require additional insulation and cooling units, which add to their height. These trailers ensure perishable goods remain fresh while traveling long distances. Despite added height, they conform mostly to the same regulatory limits via careful design.
Flatbeds differ because they have no side walls or roof, and are often shorter in height. Their open design offers flexibility for large or unusually shaped cargo like machinery or construction materials.

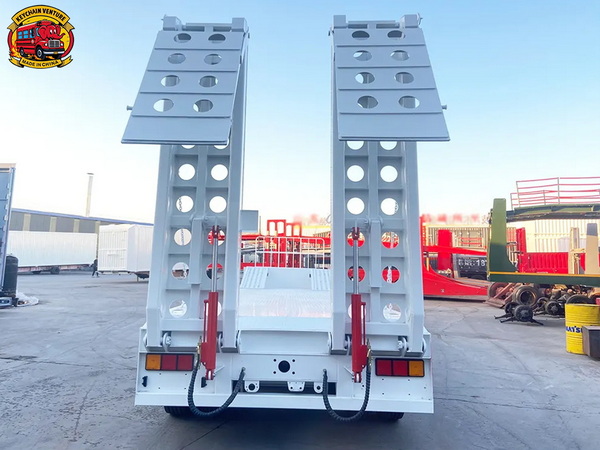

Lowboy trailers lower their deck closer to the ground, providing a reduced overall transportation height. This is especially important for moving tall but heavy equipment that otherwise wouldn't fit under height restrictions on highways or bridges.
Less common but useful for high-volume light cargo, double-deck trailers add an upper deck for doubled cargo capacity. These trailers push height limits to maximize efficiency and require special attention in route planning.
- Plan Routes Carefully: Always verify that the selected transportation path accommodates height. Use GPS and infrastructure data to avoid low bridges or tunnels.
- Get Permits When Necessary: Some operations allow slightly taller trailers but require special permits. Make sure all permits are in place before transport.
- Load With Care: Proper cargo placement prevents accidental height overages. Overloaded or careless stacking can cause the trailer to exceed legal height.
- Inspect Add-Ons Regularly: Equipment added to the trailer, like refrigeration units and aerodynamic devices, must be maintained to avoid inadvertent height increases.
- Communicate with Stakeholders: Drivers, dispatchers, and logistics planners should collaborate closely to ensure trailer height compliance.
For manufacturers and suppliers like KeyChain Venture Co., Ltd., delivering semi trailers that meet height regulations while providing optimal cargo volume is a top priority. Clients rely on these specifications not only for safety but also to maximize operational efficiency and minimize downtime.
Height considerations influence:
- Fleet Versatility: Choosing trailers with appropriate heights enables access to more routes.
- Cargo Capacity: Semi trailers with optimized heights increase payload space without compromising legal limits.
- Operational Efficiency: Compliance with height restrictions prevents delays due to detours or regulatory interventions.
- Cost Management: Avoid fines and penalties related to exceeding height limits, reducing overall transportation costs.
Using advanced materials and innovative design, leading suppliers continue to refine semi trailer heights to balance capacity, durability, and regulatory compliance.
The height of a semi trailer is a fundamental aspect of commercial vehicle design and operation, generally centered around the industry standard of 13.5 feet (4.11 meters). This height allows semi trailers to navigate most highway infrastructures safely while maximizing cargo space. However, variations exist among different trailer types like refrigerated, flatbed, lowboy, and double-deck trailers, each serving specific cargo needs.
Careful attention to height regulations across different countries and regions ensures safe transit and maintains road infrastructure integrity. By understanding the factors that affect trailer height and adhering to practical operational guidelines, fleet operators and logistics providers can optimize their transportation efficiency and compliance.
As a trusted supplier, KeyChain Venture Co., Ltd. is dedicated to providing high-performance semi trailers tailored to diverse needs, ensuring clients receive vehicles that meet both regulatory and functional requirements for superior commercial transport solutions.
The standard height is around 13.5 feet (4.11 meters) in the United States, but this can vary slightly depending on the trailer type and local regulations.
Yes. For example, flatbed trailers tend to be shorter (11.5 to 13.5 feet), while refrigerated trailers and double-deck trailers can be taller due to added equipment and cargo capabilities.
Some jurisdictions permit semi trailers up to 14 feet or slightly more, usually with special permits that must be obtained beforehand.
Check with local transportation authorities and review manufacturer specifications. Compliance involves following legal height limits and securing necessary permits.
Trailer design, type of cargo, mounted equipment such as refrigeration units, and road clearance requirements all influence the overall height.
