In the global transport and logistics industry, semi trailers play an integral role in moving goods efficiently across long distances. For businesses involved in freight and supply chain management, knowing the standard dimensions of a semi trailer, especially its length, is vital for planning, regulatory compliance, and maximizing cargo capacity. This comprehensive article explores the typical length of standard semi trailers, variations by type, regulatory considerations, and additional dimensions, providing a clear understanding for transport professionals and clients worldwide.
A semi trailer is a type of trailer without a front axle, designed to be attached to a tractor unit (truck cab). Unlike full trailers, semi trailers bear part of their weight on the towing vehicle, which enhances maneuverability and load distribution. These trailers are essential in commercial freight transport, available in various types tailored for specific cargo needs. The term "semi trailer" frequently appears in freight, logistics, and commercial vehicle contexts.
In the United States and many other countries, the federal government and transportation authorities have established standard semi trailer lengths to ensure safe highway operations and cargo compatibility. The most common length for semi trailers ranges between 48 and 53 feet (approximately 14.6 to 16.15 meters). This length is considered optimal for balancing cargo capacity, road safety, and infrastructure limits.
- Dry Van Semi Trailers: These enclosed trailers commonly measure 53 feet in length and are used for general freight.
- Flatbed Semi Trailers: Open trailers typically span between 48 and 53 feet, suited for oversized or irregularly shaped loads.
- Refrigerated (Reefer) Semi Trailers: These temperature-controlled trailers hold similar lengths but feature insulation and cooling units.
- Specialized trailers can be longer, reaching up to 80 feet when fully extended, such as extendable double drop or removable gooseneck trailers.
The semi trailer length depends significantly on the trailer's design and purpose. Below are common types and their respective size characteristics:
Dry vans are enclosed trailers shielding cargo from weather and theft. Their maximum length is typically 53 feet, with widths around 8.5 feet (2.5 meters) and heights from 2.7 to 3 meters (8.9 to 9.8 feet). They are ideal for palletized goods and general freight.

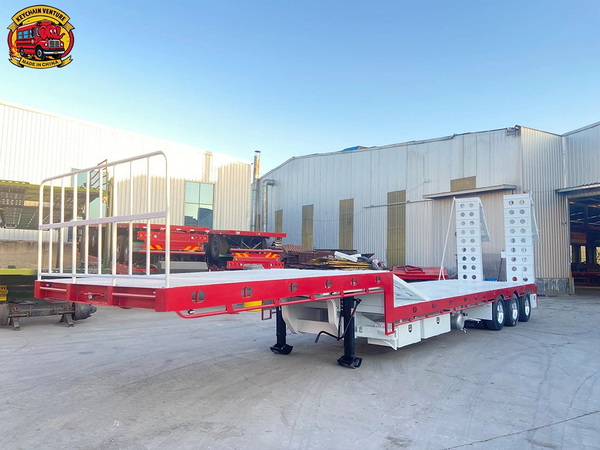

Flatbed trailers have an open deck without walls or roofs, ranging from 48 to 53 feet in length. They can carry heavy machinery, construction materials, or oversized freight. Some flatbeds are extendable to accommodate longer loads.
Reefers maintain strict temperature controls for perishable goods. Their lengths usually fall between 48 and 53 feet, with similar width standards to dry vans but equipped with refrigeration systems.
Mega semi trailers feature increased internal height and lowered floors, with typical lengths of 53 feet, widths of 2.5 meters, and heights exceeding 3 meters (approximately 10 feet). They offer greater loading volumes for bulky cargo.
Tipper trailers are specialized for bulk material transport like sand, gravel, or grain. Their lengths vary, usually from 8 to 12 meters (26 to 39 feet), catering to dump operations.
These have a lowered platform to transport tall and heavy equipment such as construction machinery. Lengths range from 8 to 12 meters and can extend further. Widths go up to 3 meters, and they offer high weight capacities.
Tankers transport liquids or gases, such as fuel or chemicals. Their lengths vary from 10 to 13.6 meters (33 to 44.6 feet) with a width of around 2.5 meters, built from corrosion-resistant materials.
Platform trailers are utilized for abnormal loads without side walls, sized similarly to flatbeds. Curtain side trailers (also known as tautliners) have flexible tarpaulins on the sides for quick loading/unloading, generally about 13.6 meters (44.6 feet) long.
Transport regulations govern semi trailer lengths to balance cargo volume with road and vehicle safety. According to U.S. Department of Transportation standards, the maximum allowable trailer length on interstate highways is typically 53 feet. Some states might have small variations or additional restrictions.
For oversized or specialized freight, permits exist to allow longer trailers, such as the extendable double drop trailers reaching up to 80 feet. These require compliant routing and special safety considerations.
Internationally, semi trailer lengths can vary based on the country's road infrastructure and transport laws, highlighting the importance of understanding regional guidelines.
Beyond length, other key dimensions are important for operational compatibility and safety:
- Width: Most semi trailers maintain a standardized width of 8.5 feet (102 inches or 2.5 meters) to fit highway lane sizes.
- Height: The common maximum trailer height is 13.5 to 14 feet (approximately 4.1 meters), accommodating bridge and tunnel clearances.
- Door Height: Trailer doors usually range between 9 and 11 feet, varying by trailer type.
These dimensions ensure that semi trailers comply with transport infrastructure while maximizing cargo capacity.
Understanding semi trailer length is vital for several reasons:
- Compliance: Prevents violations of transport regulations and avoids fines or operational delays.
- Cargo Efficiency: Affects the volume and type of cargo that can be loaded, influencing shipping costs.
- Route Planning: Longer trailers may face restrictions on certain roads, bridges, or urban areas.
- Safety: Ensures vehicle stability on highways and reduces accident risks.
- Toll & Cost Management: Vehicle size impacts toll fees, fuel consumption, and overall operating expenses.
Semi trailers come in diverse forms and sizes tailored for specific freight needs:
| Trailer Type | Typical Length (ft) | Width (ft) | Height (ft) | Key Uses |
| Dry Van | 48 - 53 | 8.5 | 13.5 | General cargo, palletized |
| Flatbed | 48 - 53 | 8.5 | 13.5 | Oversized, heavy equipment |
| Reefer | 48 - 53 | 8.5 | 13.5 | Temperature-sensitive goods |
| Mega Trailer | 53 | 8.5 | ~10 | Larger volume cargo |
| Tipper | 26 - 39 | 8.0 - 8.5 | 6月7日 | Bulk materials |
| Low Loader | 26 - 39+ | 8.5 - 10 | 1.3 - 3 | Heavy machinery |
| Tanker | 33 - 44.6 | 8.5 | 12月14日 | Liquid/gas transport |
| Curtain Side | 44.6 (13.6 m) | 8.2 | 8.9 - 9.8 | Versatile general freight |
The standard length of semi trailers primarily ranges from 48 to 53 feet, dictated by usage needs and regulatory standards. The length is influenced by trailer type—dry vans, flatbeds, reefers, and specialty trailers have specific dimensions optimized for their freight purpose. Regulatory bodies balance cargo efficiency against road safety by limiting maximum trailer lengths, while additional dimensions like width and height are standardized for infrastructure compatibility.
For logistics professionals and customers, understanding these dimensions ensures compliance, safety, and operational efficiency. As a leading commercial vehicle supplier, KeyChain Venture Co., Ltd. offers a wide range of semi trailers customized to meet domestic and international transport demands, backed by technical expertise and quality assurance.
The most common semi trailer length is 53 feet, widely used for general freight across highways.
Yes, some specialized trailers, such as extendable double drop trailers, can extend up to 80 feet, usually under special permits.
Trailer function, cargo volume, and regulatory limits primarily determine the length.
Most semi trailers maintain a standard width of 8.5 feet to comply with road regulations.
Longer trailers can carry more cargo, improving cost efficiency but must adhere to safety and legal limits on roads.
